ASTM A213 TP304/304L/TP316/316L/316Ti Seamless Coiled Tubing
SSSSLCT07
Material: 304, 1.4301, X5CrNi18-10; 304H, S30415, 1.4948, S30409; 304L, 1.4306, S30403, 1.4307;
Get Quote

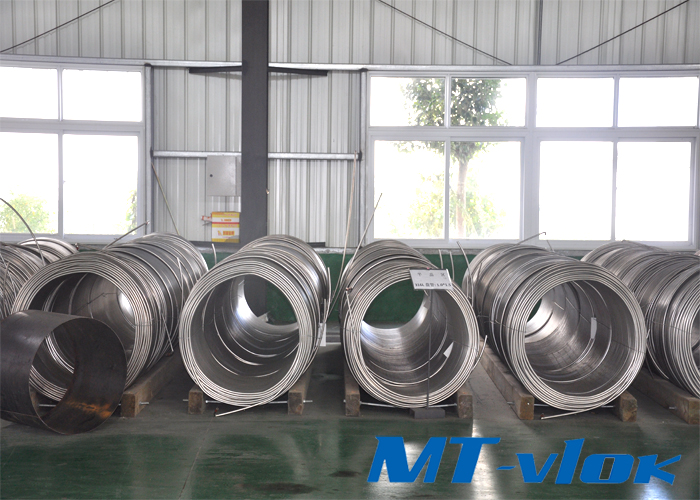

ASTM A213 6.35mm TP304L Stainless Steel Super Long Coiled Tube For Control Line
Chemical Composition :
| Material | ASTM A269 Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP316L | 0.035 D | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ |
| Size | OD : 4.76 - 25.4mm |
| WT : 0.71 - 2.11mm | |
| Length : >1000Meters | |
| 4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm | |
| 6 * 1mm / 6 * 1.5mm | |
| 6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm | |
| 7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm | |
| 9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm | |
| 10 * 1mm / 10 * 1.5mm | |
| 12 * 1mm / 12 * 1.5mm / 12 * 2mm | |
| 12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm | |
| 14 * 1mm / 14 * 1.5mm / 14 * 2mm | |
| 15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm | |
| 16 * 1mm / 16 * 1.5mm / 16 * 2mm | |
| 19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm | |
25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm |
Material Grade :
| American Standard | TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L Etc |
| European Standard | 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 Etc |
| German Standard | X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc |
ASTM A213 / A213M Chemical Composition :
| Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
| (C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
| (Mn) Manganese, max | 2 | 2 | 2 | 2 |
| (P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
| (S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
| (Si) Silicon, max | 1 | 1 | 1 | 1 |
| (Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
| (Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
| (Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
| (Fe) Iron | Bal. | Bal. | Bal. | Bal. |
| (Cu) Copper | N/A | N/A | N/A | N/A |
| (N) Nitrogen | N/A | N/A | N/A | N/A |
VIP SERVICE
VR (Virtual) Mill Introduction
Professional Remote Technical Guidanceion
Accept Third-party Inspection
Door to Door Shipment
